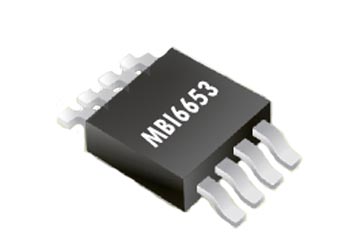

Step-Down 1A Dimmable LED Driver MBI6653

 Step-Down 1A Dimmable LED Driver

Briefing
MBI6653 is a step-down constant-current high-brightness LED driver to provide a cost-effective design solution for interior/exterior illumination applications. It is designed to deliver constant current to light up high power LED with only 4 external components. With hysteretic PFM control scheme, MBI6653 eliminates external compensation design and makes the design simple.

1A LED Driver IC MBI6661

 1A LED Driver IC

Briefing
MBI6661 is a high efficiency, constant current and step-down DC/DC converter. It is designed to deliver constant current to light up high power LED with only 5 external components. By hysteretic PFM control scheme, MBI6661 omits the external compensation design.
Categorie di prodotti.
Visualizza Manufacturing Services prodotto
Display LED
LED driver IC (8)
Fari a LED
Illuminazione a LED
Moduli LED
Luci posteriori a LED
Bianco LED driver IC
Macroblock Inc. Logo

Macroblock Inc.

Tipo di attività: Manufacturer → Manufacturing Equipment
1 Categoria , 8 Prodotti Listing.

casa > LED driver IC
E-mail a un collega stampa  Salva questa azienda

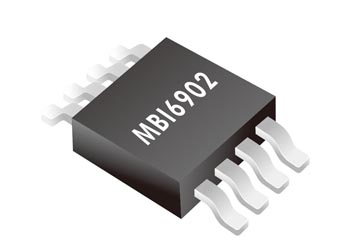

Nome del prodotto: AC/DC LED Controller

Numero del prodotto: MBI6902

Descrizione Breve:
MBI6902 is a high efficiency step-down AC/DC controller designed to deliver constant current. The input voltage range of MBI6902 is universal from 80VAC to 265VAC. It is featured by a hysteretic PFM control scheme which enhances the efficiency in light load conditions.

Official Site

  • Caratteristiche principali:



    l           Universal AC input from 80VAC to 265VAC
    l           Efficiency> 90% when VAC =110V, ILED=350mA, 6-LED load
    l           Setting current accuracy within ±5%
    l           Driving external MOSFET current up to 3Amperes
    l           Hysteretic PFM improves efficiency in light load conditions
    l           Full protection: Thermal/UVLO/OVP/LED Open/Short Circuit

           Available in MSOP-8L package

  • Applicazioni principali:



    l           T-8 CFL Replacement LED Solution
    l           E26/E27 Light Bulb Alternative LED Solution
    l           General Illuminations

           Power Supply for Light Panel

  • specificazioni:



    MBI6902 is a high efficiency step-down AC/DC controller designed to deliver constant current. The input voltage range of MBI6902 is universal from 80VAC to 265VAC. It is featured by a hysteretic PFM control scheme which enhances the efficiency in light load conditions. MBI6902 regulates the output current within ±5% of the preset current by well controlling the external MOSFET. In addition, LED dimming control can be implemented by connecting the output of a photocoupler to the DIM pin. MBI6902 is also characteristic of protecting the controller from fault conditions, inclusive of under voltage lock-out (UVLO) and over voltage protection (OVP). To ensure system reliability, thermal protection (TP) is built-in to prevent IC from over temperature (155°C) by turning off the external MOSFET. Once the temperature drops below 125°C, the external MOSFET will resume working. MBI6902 is available in MSOP-8L package.
