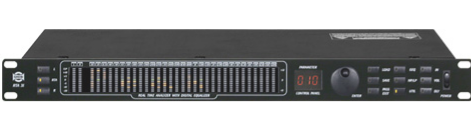

Graphic EQ Analyzer RTA15/ RTA31

 Graphic EQ Analyzer

Briefing
RTA15/RTA31 with Line in, Mic. in, white & pink noise generator, 15/31 band EQ with real time analyzer, high-pass/low-apss filter, delay, volume control and bypass functions. It provides precise audio signal control to tixed sound installation, live performance and studio applications.
Categorie di prodotti.
Compressori / Limiter / Portoni Audio (1)
Sistemi audio conferenza (1)
Attrezzatura per il trattamento audio
Crossover (1)
Equalizzatori (1)
EQ grafico con il tempo reale Analyzer (1)
Mixing Console (1)
Preamplificatori (1)
Professional Audio Amplificatori (1)
Professionale registratore digitale (1)
Altoparlanti professionali (1)
Professionali di commutazione Amplificatori di Potenza (1)
Sistemi di informazione pubblica (1)
Switching Power Mixer (1)
Seikaku Electron Industrial Co., Ltd. Logo

Seikaku Electron Industrial Co., Ltd.

Tipo di attività: Manufacturer → Manufacturing Equipment
13 Categoria , 13 Prodotti Listing.

casa > Switching Power Mixer
E-mail a un collega stampa  Salva questa azienda

Nome del prodotto: Switching Power Mixer

Numero del prodotto: SPM-81000

Descrizione Breve:
PM is a recently upgraded powered box mixer boasting 100 built-in digital effects which are designed specifically for use with instruments and vocals.It combines 6/8 channels of operation, graphic EQ, 220W/350W RMS load at 4? power amplifier, balanced XLR combo inputs and stereo PHONES and balanced main outputs. The powerful features make SPM the most flexible and easy operation unit.

Official Site

  • Caratteristiche principali:
    • Output power (load 4Ω): SPM-81000: 350W×2 (RMS); 500W×2 (EIAJ)
    • One stereo and one mono graphic EQ.
    • Digital effects with 100 presets.
    • PAD buttons for controlling loud input signals (only mono channel).
    • 8 Balanced XLR combo inputs with 48 Volt phantom power (SPM-81000).
    • One tape input channel assignable to MAIN or to MONITOR.
    • Each channel has 3-band EQ, one monitor, one effect send, and one XLR input.
    • 4 stereo channels with RCA inputs (SPM-81000).
    • RCA L/R tape in and L/R tape out.
    • Stereo PHONES and balanced MAIN outputs.
    • POWER AMP outputs with Stereo or Monitor/Main and Bridge mode.


  • specificazioni:

    MODEL SPM-81000
    Mono input channels * Microphone input: electronically balanced,discrete input configuration
    * Frequency response: 10Hz to 55kHz, ?/?3dB
    * Distortion (THD?N): 0.005% at ?4dBu, 1kHz
    * Gain: 60dB (MIC)
    * SNR (Signal to Noise Ratio): ?90dB
    * Line input: electronically balanced
    * Frequency response: 10Hz to 55kHz, ?/?3dB
    * Distortion (THD?N): 0.005% at ?4dBu, 1kHz
    * Gain: 45dB
    Stereo input channels * Line input: Unbalanced
    * Frequency response: 10Hz to 55kHz, ?/?3dB
    * Distortion (THD?N): 0.005% at ?4dBu, 1kHz
    * Gain: 30dB
